Description

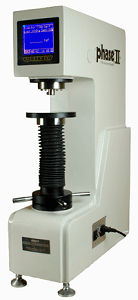

Model No. 900-355
Features:- Load Cell driven system provides precise control of test force application
- Direct digital reading
- Engineered to obtain highly sensitive and accurate readings
- Perfect for laboratories, workshops, tool rooms, inspection labs, etc.
- Measuring Range: 8-650HBW
- Innovative closed-loop technology. The Brinell hardness tester incorporates the latest load cell technology. The test load is applied via a closed-loop control unit with a load cell, a DC motor and an electronic measurement and control unit. The result is highly accurate Brinell hardness measurements at all test loads up to 0.5%. The common load overshoot or undershoot as known from traditional dead weight, or open-loop, systems is eliminated. The absence of mechanical weights not only eliminates friction problems but also makes the equipment less sensitive to misalignments caused by vibrations.
- The whole weight of the tester is 50% less than the traditional dead weights type tester.
- Test load selection by keyboard and LCD screen.
- Fully automatic test cycles. The Brinell hardness Tester features a fully automatic test cycle, load application, holding, unloading, is performed fully automatically. This greatly improves reproducibility of test results since operator influence is eliminated.
- Selectable dwell times by screen. The indenter, load, and other test information are shown clearly on the large LCD screen.
- The directions for 0.102F/D2 ratios selecting according to the materials and hardness range can be showing on the screen.
- Equipped with a 20X optical microscope to measure the diameter of Brinell indention.
- Brinell Hardness Calculator (BHC) make the hardness value calculation easier and convenient.
- NIST/ASTM certified hardness test blocks, penetrators and kits are available.
Technical Data | Loads：3000kgf (29400N), 1500Kgf (14700N), 1000Kgf (9800N), 750Kgf(7355N),500Kgf (4900N),250Kgf (2452N), 187.5Kgf (1839N), 125Kgf (1226N),100Kgf (980N), 62.5Kgf(612.9N) | ||
| Load dwell duration: 2s～99s, can be set and stored | ||
| Tungsten Carbide Ball indenter: 10mm, 5mm, 2.5mm | ||
| Measuring range: 8-650HBW | ||
| Magnification of the microscope: 20X | ||
| Resolution capability of the microscope: 0.005mm | ||
| Accuracy of Brinell Hardness Value: | ||
| Hardness Range(HBW) | Error (％) | Repeatability(％) |
| ≤ 125 | ± 3.0 | ≤ 3.0 |
| 125 < HBW ≤ 225 | ± 2.5 | ≤ 2.5 |
| > 225 | ± 2.0 | ≤ 2.0 |
| Max measurable height: 230 mm | ||
| Max measurable depth: 140 mm | ||
| Dimensions: 530mm×260mm×750mm | ||
| Power supply: 220/110 V, 50/60 Hz, 4A | ||
| Weight: 110kg | ||
| Standard blocks: 125-350HBW10/3000, 125-350HBW10/1000 | ||
